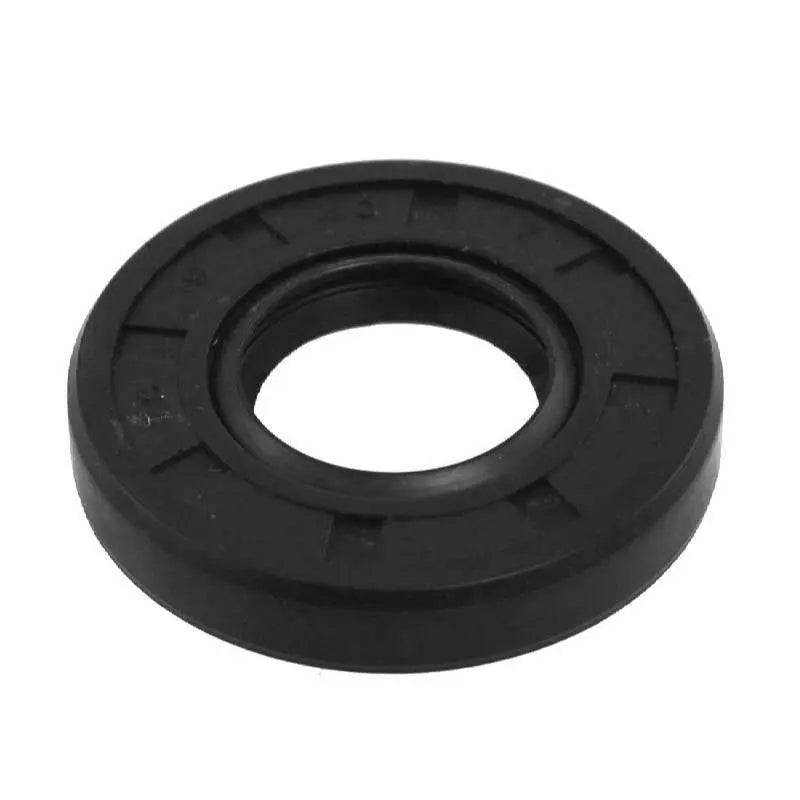

Shaft Oil Seal TC10x15x4 Rubber Covered Double Lip w/Garter Spring ID 10mm OD 15mm 10x15x4 10 x 15 x 4 mm
Shaft Oil Seal TC10x15x4 Rubber Covered Double Lip w/Garter Spring ID 10mm OD 15mm 10x15x4 10 x 15 x 4 mm
SKU:TC10x15x4
Couldn't load pickup availability
Rotary Shaft Oil Seal | Double Lip | Shaft Diameter (10mm) x Bore Diameter (15mm) x Width (4mm) | Nitrile Rubber Lip Material.
Product Overview:
This Rotary Shaft Oil Seal features a double lip design engineered for compact yet high-performance sealing applications. With a 10mm shaft diameter, 15mm bore diameter, and 4mm width, this seal is ideal for use in tight-fitting mechanical assemblies. The Nitrile Rubber (NBR) lip provides superior resistance to oil, grease, and environmental contaminants, while the optional garter spring enhances dynamic sealing performance. This seal is perfect for use in electric motors, pumps, gearboxes, and other rotary systems.
- Brand : AVX Seals
- Item Sku : TC10x15x4
- Type : TC 10x15x4 mm
- Inner : 10mm
- Outer : 15mm
- Width : 4mm
- Size : 10mm x 15mm x 4mm
- Seal Material : Nitrile Butadiene Rubber
- Temperature Range : -40 to 248 F
Applications: Shaft Oil Seal
-
Electric Motors: Maintains lubricant integrity in high-speed environments.
-
Gearboxes and Transmissions: Provides reliable sealing in compact rotating systems.
-
Small Pumps and Compressors: Prevents fluid leakage and blocks debris ingress.
-
Power Tools: Protects inner workings from dust and oil leaks.
-
Household Appliances: Seals rotary components in washers, dryers, and small compressors.
-
Medical and Lab Devices: Suitable for clean and controlled rotary operations.
Frequently Asked Questions (FAQs):
Q1: What does the double lip do?
A: The double lip design offers two sealing edges—one to retain oil or grease and one to block dust, dirt, and water.
Q2: What material is this Oil Seal made of?
A: The sealing lips are made from Nitrile Rubber (NBR), which is resistant to oil, fuel, and wear. The core is reinforced with steel.
