Description

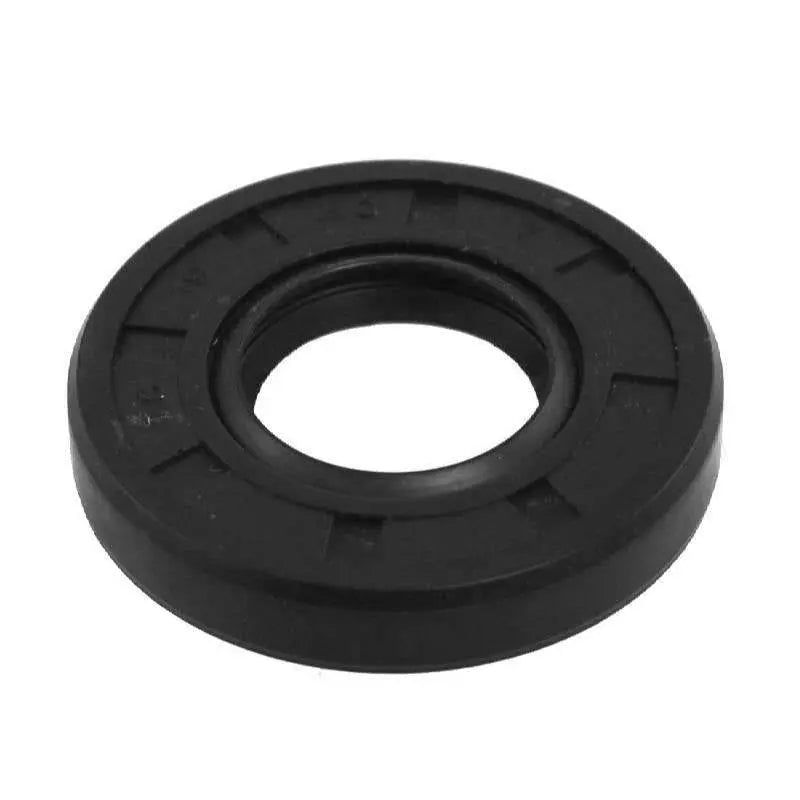

TC oil seal 130x162x15 mm made from NBR with a spring-loaded double lip for tight sealing. Built to block oil, grease, and dirt in rotating shafts for smooth, long-lasting performance.
- Type: TC (rubber covered, double lip, garter spring)
- ✔️ Inside Diameter: 130mm
- ✔️ Outside Diameter: 162mm
- ✔️ Width: 15mm
- ✔️ Material: NBR (Nitrile Butadiene Rubber)
- ✔️ Temp Range: -30°C to +100°C
- ✔️ Applications: gearboxes, pumps, small mo to rs, au to motive machinery and pressure
Q&A
💡 What speed can a TC seal run?
It depends on shaft size and media, but many TC seals are comfortable up to about 8 to 12 m/s with proper lubrication and cooling. Built to be handy in real shop conditions and keep machines running smoother.
Technical Q&A
What is a Shaft Oil Seal TC130x162x15 Rubber Covered Double Lip w/Garter Spring ID 130mm OD 162mm 130x162x15 130 x 162 x 15 mm Oil Seal?
Shaft Oil Seal TC130x162x15 Rubber Covered Double Lip w/Garter Spring ID 130mm OD 162mm 130x162x15 130 x 162 x 15 mm is a double-lip rotary shaft oil seal that blocks oil leaks and keeps contaminants out.
Sold by AVX Seals (Anaheim, California). Fast US & international shipping.
Key Benefits
- Leak prevention: Spring-loaded primary lip maintains consistent contact on the shaft.
- Contamination resistance: Dust lip helps keep out dirt and moisture.
- Durable under dynamic conditions: Designed for continuous rotation within rated speed and pressure.
- Material fit: NBR is suitable for common oils; choose FKM for higher heat/chemicals.
- Temperature capable: Rated -30 to 100 °C (verify per application).
Common Applications
- Marine shaft applications and general rotating equipment
- Hydraulic pumps & motors (low-pressure shaft sealing)
- Gearboxes, reducers, and power-transmission housings
- Automotive & motorcycle engines, crankshafts, differentials
- Agricultural & industrial machinery, electric motors, fans
Key Specifications
- Size: 130 × 162.0 × 15.0 mm (ID × OD × Width)
- Type: NBR (TC = double lip with spring)
- Material: NBR (NBR / FKM)
- Spring: Stainless steel garter spring
- Temperature: -30 to 100 °C
- Speed (max): 1800 rpm
- Pressure (max): 5.0 bar
FAQs about Shaft Oil Seal TC130x162x15 Rubber Covered Double Lip w/Garter Spring ID 130mm OD 162mm 130x162x15 130 x 162 x 15 mm Oil Seals
Q1. What does NBR mean?
A1. NBR indicates a double-lip design with a spring for better sealing.
Q2. What do 130×162.0×15.0 mean?
A2. Inner diameter, outer diameter, and width in millimeters.
Q3. How do I measure oil seal size?
A3. Measure the shaft (ID), the bore (OD), and the housing groove width (W) with calipers; match to the printed size.
Q4. How do I install a TC oil seal?
A4. Lightly oil the lips and shaft; protect threads/keys; press the seal squarely using a driver; primary lip faces the fluid.
Q5. Which way should the lips face?
A5. The primary lip faces the fluid; the dust lip faces outward to block contaminants.
Q6. What shaft surface finish and hardness are recommended?
A6. Typical Ra 0.2–0.8 µm with proper hardness and no burrs or spiral grooves; confirm per your standard.
Q7. When should I choose NBR vs FKM?
A7. NBR suits oils up to ~100 °C; FKM handles higher heat and aggressive media.
Q8. Is FKM the same as Viton?
A8. Viton® is a brand of FKM fluoroelastomer; use FKM as the generic name.
Q9. Can this seal handle pressure?
A9. Standard TC is for low pressure (up to ~5.0 bar). Use pressure-rated designs above spec.
Q10. Common causes of early failure?
A10. Misalignment, dry-running, wrong material, poor shaft finish, contamination, or over-speed/temperature.
Q11. Do I need lubrication during installation?
A11. Yes, lightly oil the lips and shaft to reduce start-up wear and friction.
Q12. Typical storage guidance?
A12. Store cool, clean, and dark; avoid ozone/UV; use within recommended elastomer shelf life.
Related Links
- See all TC oil seals (full range)
- Sizes similar to 130×162.0 (all widths)
- Viton®/FKM alternative in 130×162.0×15.0
- Reference guide to TC oil seals (selection, install, troubleshooting)
- Gearbox oil seal options (TC)
- Hydraulic motor shaft seals (TC)
- Marine shaft oil seals (TC)
Quick Reference
| Model | Shaft Oil Seal TC130x162x15 Rubber Covered Double Lip w/Garter Spring ID 130mm OD 162mm 130x162x15 130 x 162 x 15 mm |
|---|---|
| Type | NBR |
| Size (mm) | 130×162.0×15.0 |
| Material | NBR |
| Temp Range | -30–100 °C |
| Max Speed | 1800 rpm |
| Max Pressure | 5.0 bar |
| Brand | AVX Seals |
| Location | Anaheim, California, USA |
