Description

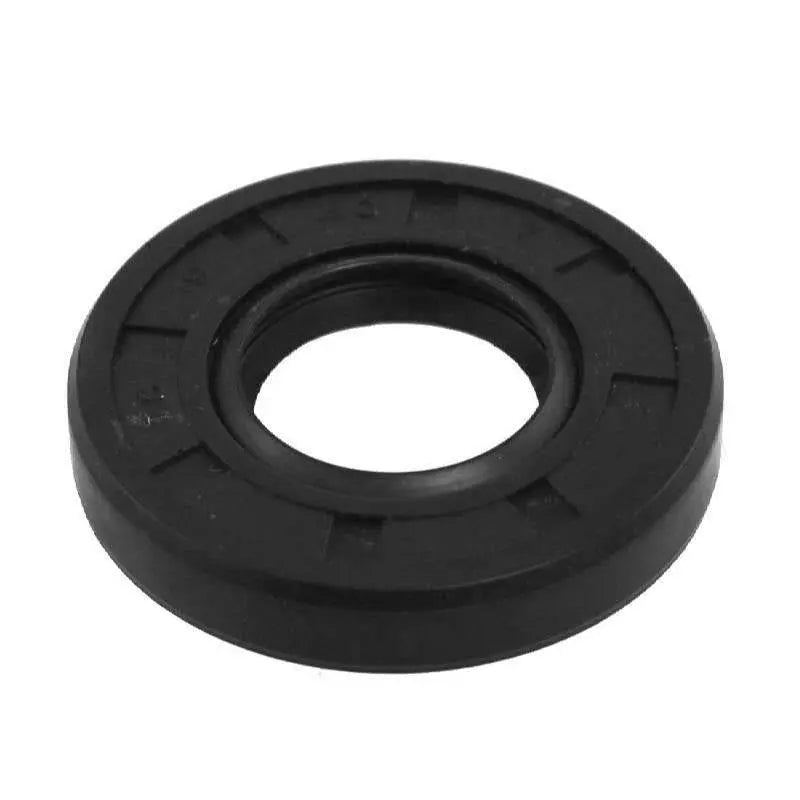

Rotary Shaft Oil Seal | Double Lip | Shaft Diameter (16mm) x Bore Diameter (22mm) x Width (3mm) | Nitrile Rubber Lip Material.
Product Overview:
Rotary Shaft Oil Seal – Double Lip (16mm x 22mm x 3mm)**
The Rotary Shaft Oil Seal – Double Lip (16x22x3mm) is a precision-engineered seal designed for compact rotary applications where space is limited but sealing performance is critical. This seal features a double lip design for dual protection—retaining lubricants and excluding external contaminants such as dust, dirt, and moisture. An integrated garter spring ensures stable radial pressure around the shaft, enhancing sealing reliability even under dynamic conditions.
Made from Nitrile Rubber (NBR) and reinforced with a steel core, this oil seal offers excellent resistance to oils, greases, and mild chemicals. Its rubber-coated outer diameter ensures a secure fit and minimizes vibration. With a shaft diameter of 16mm, bore diameter of 22mm, and width of only 3mm, it is ideal for high-speed, space-constrained environments requiring long-lasting performance.
- Brand : AVX Seals
- Item Sku : TC16x22x3
- Type : TC 16x22x3mm
- Inner : 16mm
- Outer : 22mm
- Width : 3mm
- Size : 16mm x 22mm x 3mm
- Seal Material : Nitrile Butadiene Rubber
- Temperature Range : -40 to 248 F
Applications:
-
Compact gearboxes and transmissions
-
Miniature electric motors
-
Hydraulic and pneumatic components
-
Precision mechanical drives
-
Automation and robotics
-
Small bearings and actuators
-
Home appliances and power tools
-
Medical and lab equipment with rotating shafts
❓ Questions & Answers:
Q1: Why use a double lip oil seal instead of a single lip?
A1: The double lip seal offers enhanced protection by retaining lubrication on one side and blocking out dust, debris, and moisture on the other—greatly extending system life and reliability.
Q2: What material is the seal made from?
A2: The lip is made from Nitrile Rubber (NBR), known for its excellent resistance to petroleum-based oils, greases, and moderate chemicals. The core is steel-reinforced for added strength.
